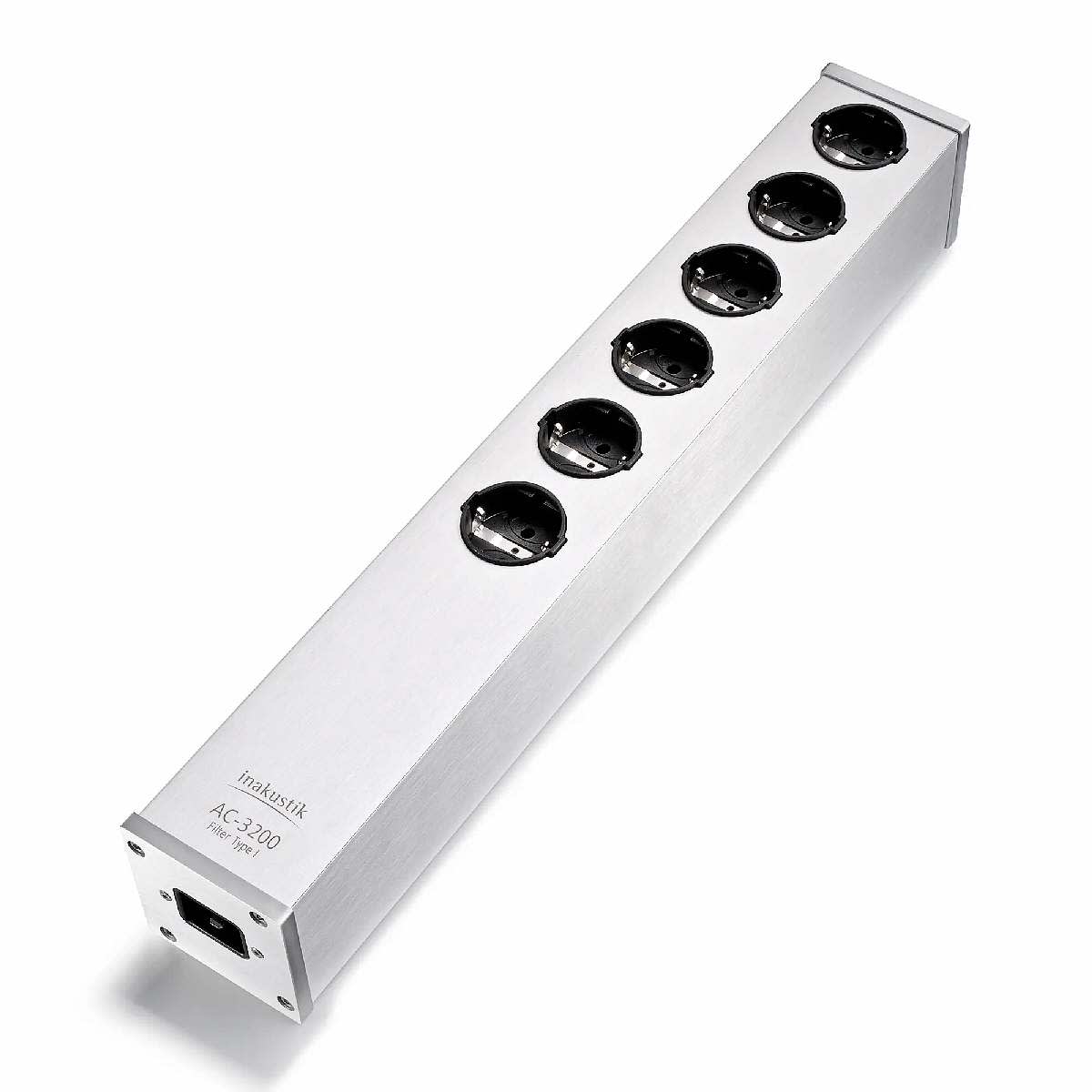

inakustik High End Power strip AC-3200 Filter digital

In-Akustik High End Power strip AC-3200 digital | Schuko

Interference-free music enjoyment for digital hi-fi components begins with a precisely tuned power supply. The AC-3200 with filter type II was specially developed for modern systems with streamers, DACs, network players, and other digital devices—and was designed from the ground up by us and built in our cable factory.

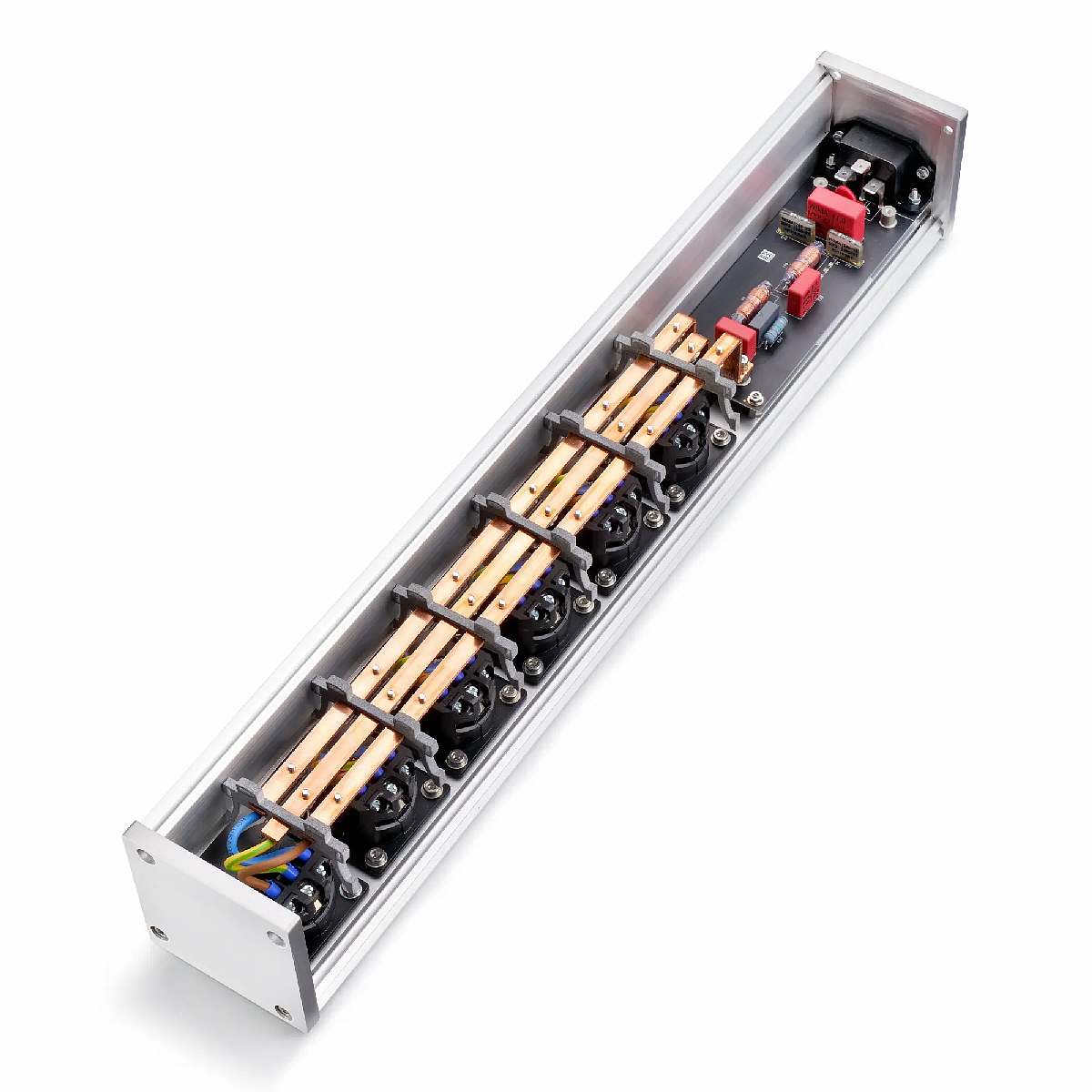

The special feature of this power strip is its finely tuned, parallel-operating filter network (filter type II): high-frequency interference is effectively filtered out of the power supply, while the dynamics of your connected devices are fully preserved. Unlike many conventional filter circuits, no components are connected in series here – so there is no restriction on current flow or impulse response. The result: digital audio components benefit from an exceptionally clean power supply and maximum performance – for a clear, detailed sound image without any loss of dynamics.

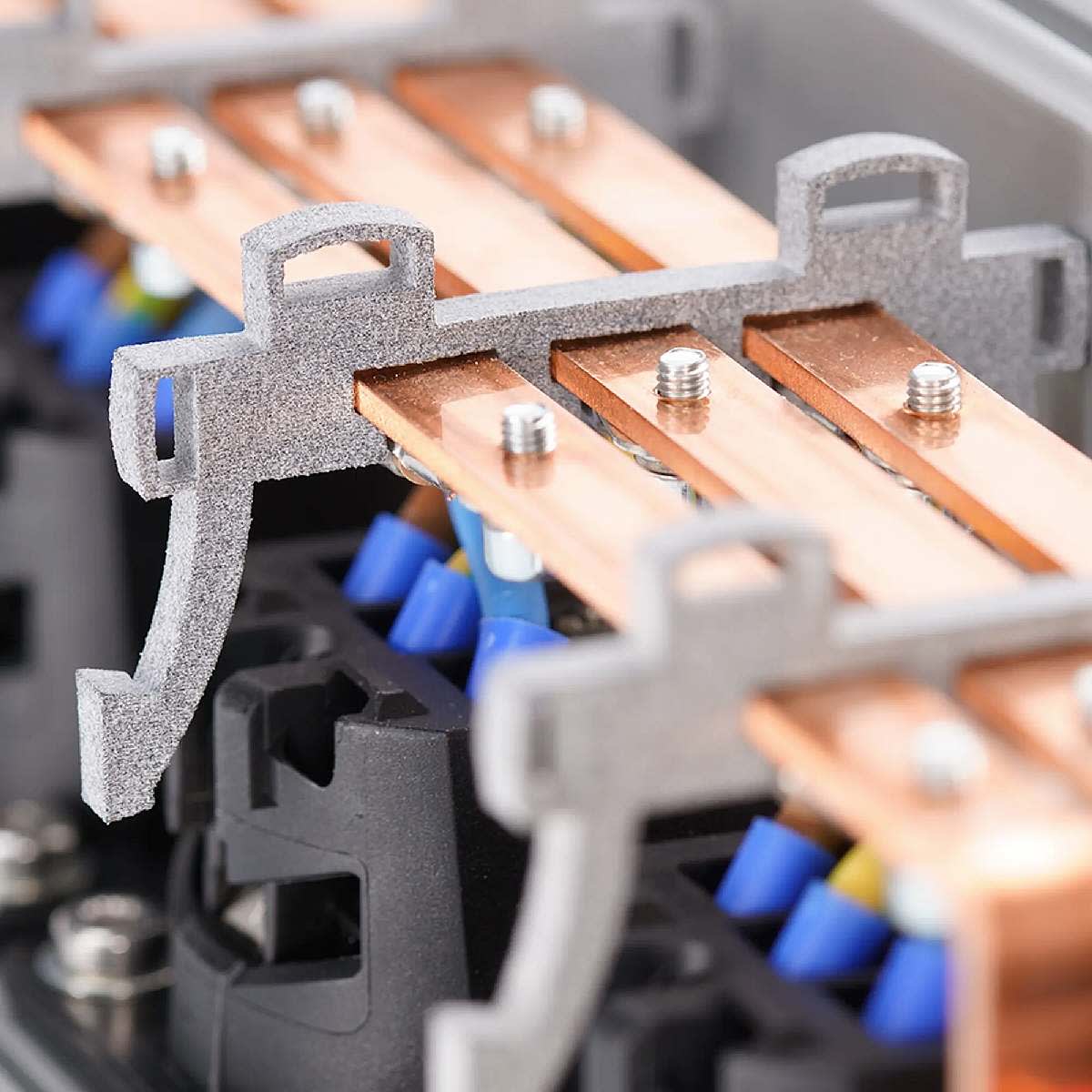

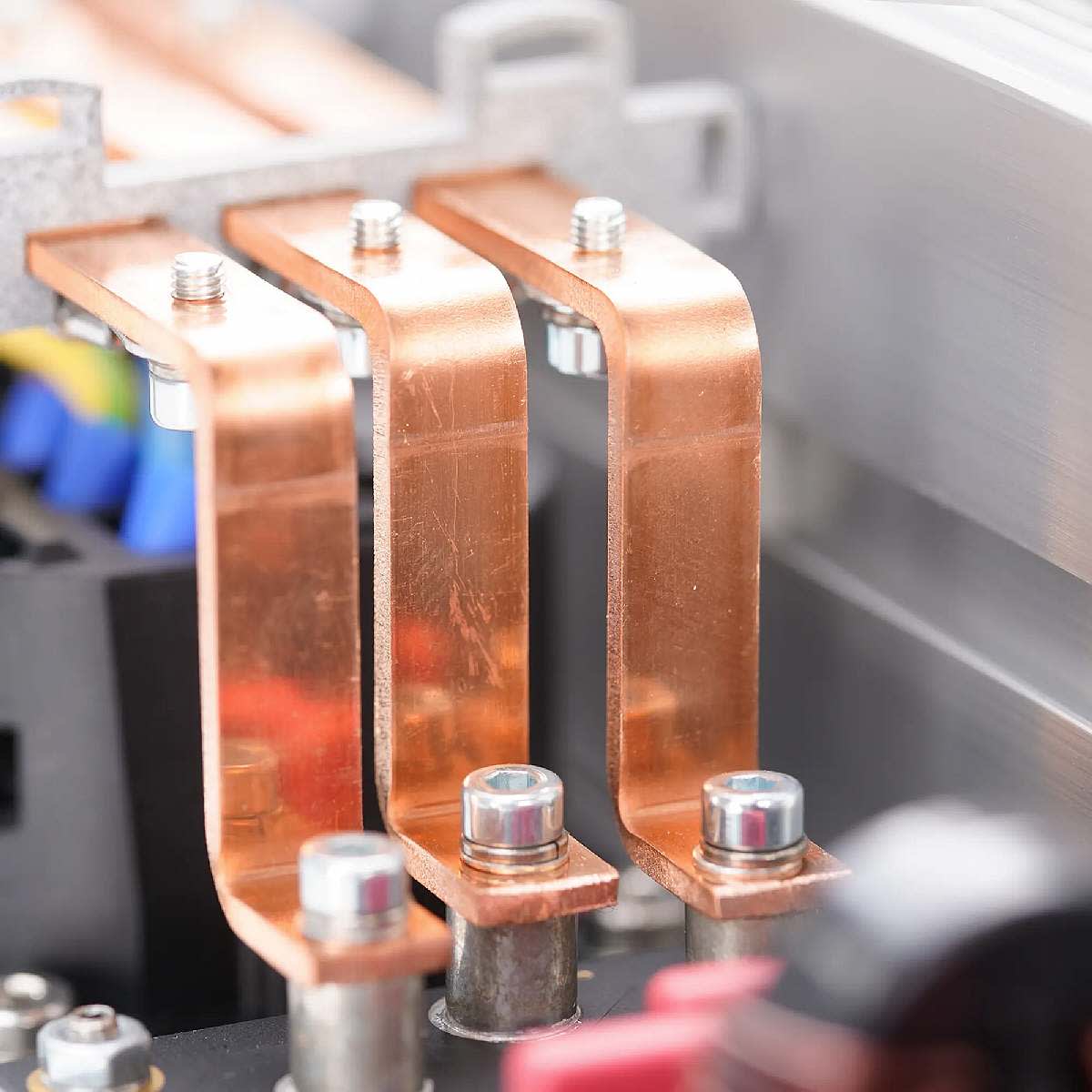

Solid copper busbars, high-quality sockets, and the elegant brushed aluminum housing ensure maximum reliability, durability, and low-loss power distribution. Integrated surge protection reliably protects your valuable hi-fi equipment from voltage spikes.

Each individual AC-3200 is manufactured in Germany and undergoes strict, CE-compliant unit testing: In addition to high-current protective conductor testing, high-voltage insulation testing is also performed – for uncompromising safety and quality.

Special features of the power strip:

• Parallel filter network (Type II) for digital devices
• Filters high-frequency interference, preserves dynamics
• Effective reduction of mains interference and interference
• High-purity copper busbars & solid sockets
• Elegant aluminium housing, integrated surge protection
• Entirely developed in-house, individually CE-compliant tested/Liste]

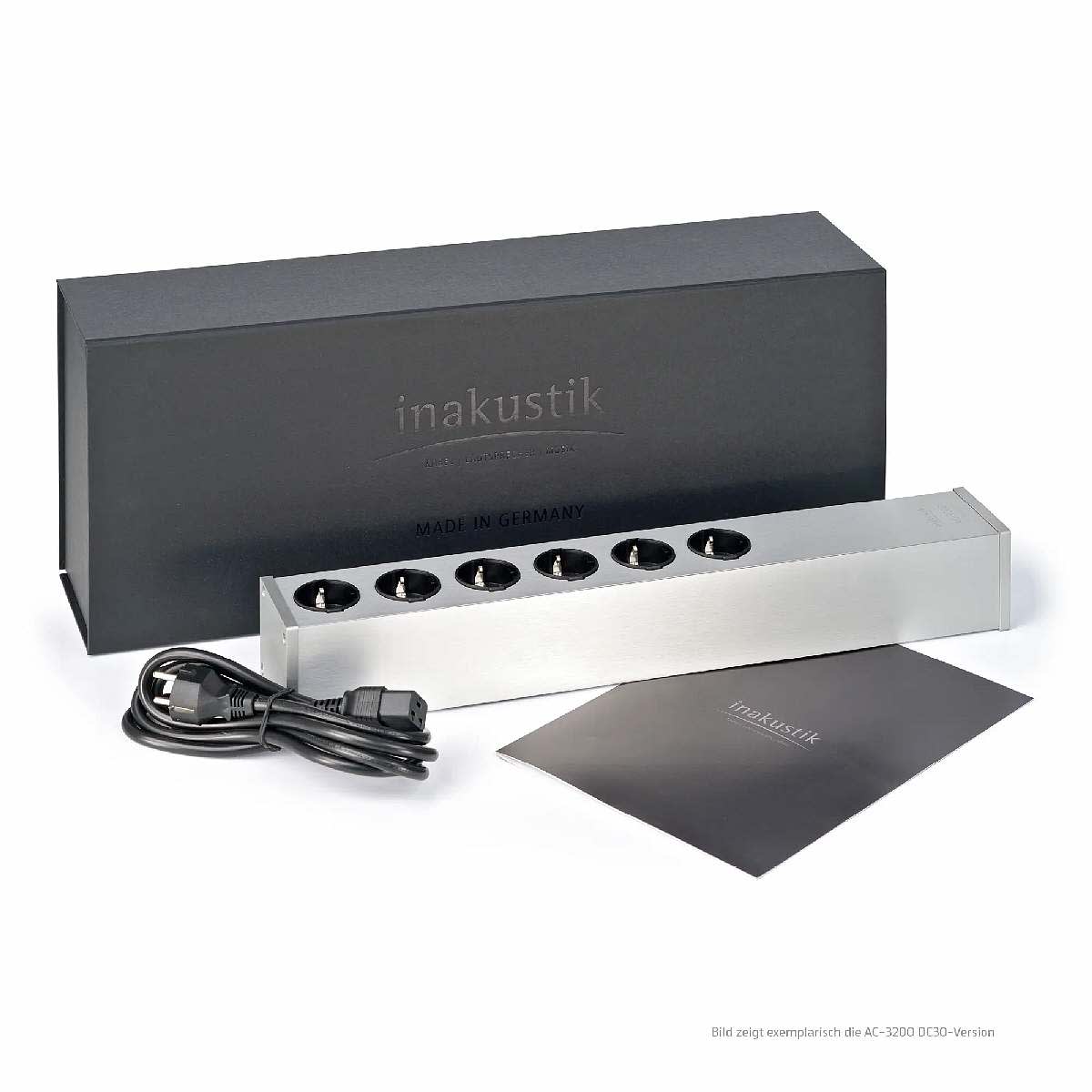

• Scope of delivery:
• [Liste]Referenz AC-3200 Power strip
• Standard power cable
• Operating instructions

Other:

• Surge protection: yes
• Protection class: 1
• Dimensions: 512 x 77 x 77 mm
• Internal wiring: 16 mm² busbars
• Rated voltage: 230 V AC | 50/60 Hz
• Rated current: 16 A (total)
• Conductor material: high-purity copper

The right solution for every hi-fi system:

Mhe AC-3200 power strip provides you with a power supply that has been specially developed for audiophile requirements. The series comprises three versions perfectly matched to different applications:

• AC-3200 DC-Blocker: Protects your hi-fi system from DC components in the mains supply, prevents transformer hum and ensures a balanced supply - ideal for components with toroidal transformers.
• AC-3200 Filter Analog: The serially constructed filter network (type I), in which the useful current is conducted via coils, is ideal for analogue devices such as amplifiers, preamps or record players. The coils offer high resistance to mains interference and reduce it in a targeted manner. This ensures a quieter and more detailed sound.
• AC-3200 Filter Digital: The parallel filter network (type II), which dissipates annoying interference frequencies to earth, is designed for digital components such as streamers, DACs and network players. It filters high-frequency interference particularly effectively without impairing the dynamics of your devices.

Each version of the AC-3200 is the result of consistent development work and targeted sound optimisation - for a listening experience that inspires
