IsoTek V5 ELEKTRA 6-Fach Power filter


Item Number:

isot-I508004

EAN:

5060296412340

Anzahl der Ausgänge:

6

Netzeingang:

IEC, mit Sicherung

Netzspannung:

230 Volt/50 Hz–60 Hz

Stromstärke Steckdosen:

2x 10 A / 4x 5 A

Gesamtleistung (230V):

3680 W

Maximaler Stromfluss:

16 A kontinuierlich

Abmessungen (BxHxT):

k.A.

Gewicht:

k.A.

Farbe:

schwarz

Hersteller:

Isotek

Delivery Time:

5-7 days


Price:

1.599,00 *

(Price quotation / Stück)



Please select a variation:

Farbe: Add to Cart

IsoTek V5 Elektra Power filter


6-way filtered power distributor, Practical power distribution directly in the rack.

Elektra brings IsoTek's legendary multiple and individual power cleaning systems back into an attractive price range. Elektra is therefore IsoTek's most cost-effective upgrade to power cleaning. DC resistance is close to the ideal value of zero ohms. The protection rating is four times the minimum requirement and is 67,500 A at peak. ELEKTRA is basically six independent current cleaning systems in one box!

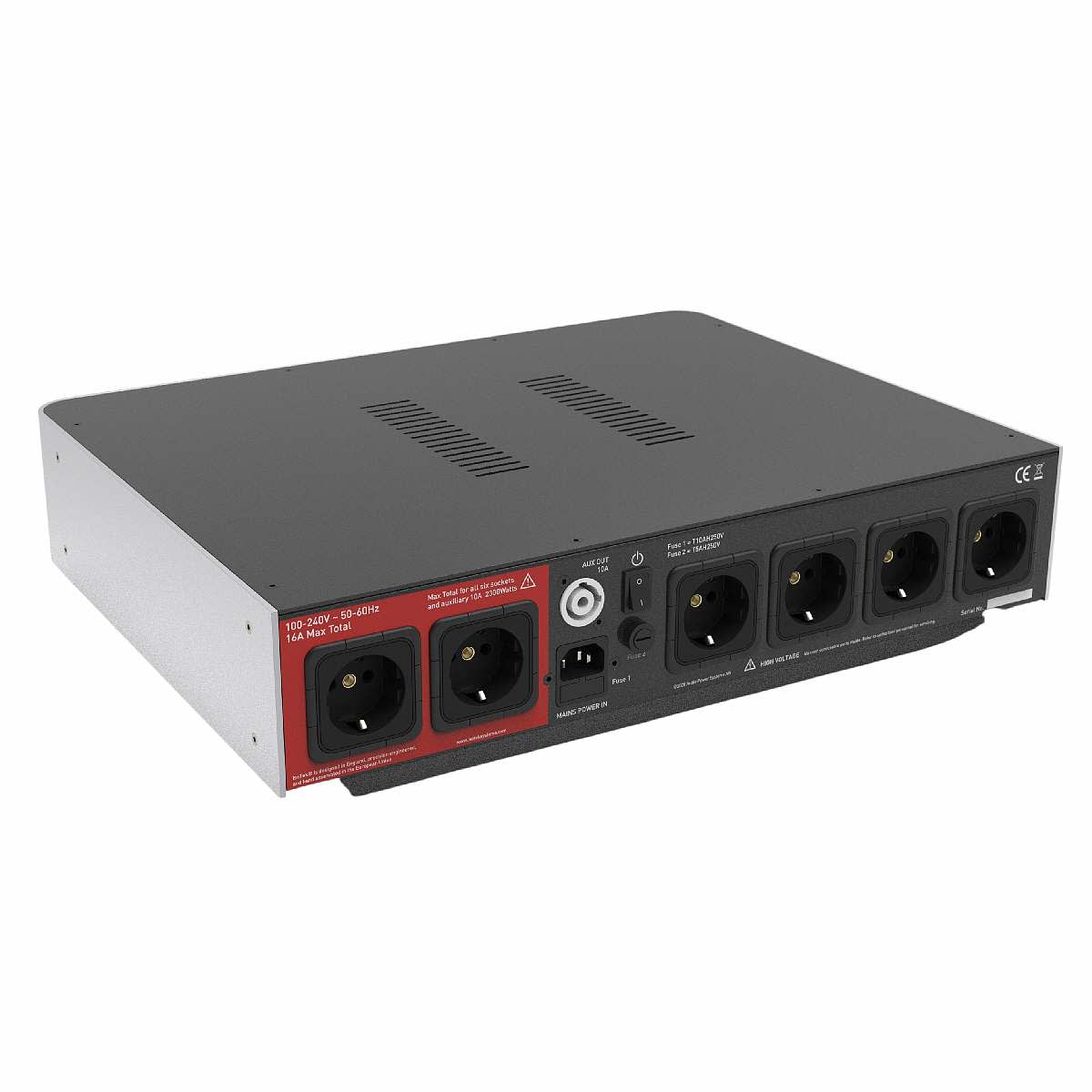

V5 Elektra is IsoTek's new entry-level model with six independent outlets, each with its own individual filter system.

Elektra measures 450 mm in width, 350 mm in depth and 106 mm in height, has two high-current outputs (for amplifiers), each with a two-stage high-current filter consisting of both a choke and a double pi filter design.

Each of the four remaining mid-current outputs (for source components) has four independent six-stage delta filters for power enhancement, providing a clean-up performance of almost 20 dB at 1 kHz (reference 600 ohms), which then improves to almost 40 dB at 10 kHz, which is ten times higher than the recommended standard.

A further five independent filter stages are located between each output, combined with IsoTek's Adaptive Gating system, which is twice the size of the EVO3 Aquarius. This system is designed to prevent cross-contamination in differential mode between each outlet.

Features of the V5 Elektra
  • Suitable for all audio and AV systems
  • RFI reduction 50dB
  • 6 optimised independent current-cleaning circuits for effective elimination of push-pull and common-mode interference
  • 4 independent sockets for source components (5A)
  • 2 independent high-current outputs for power amplifiers, active subwoofers, active loudspeakers, etc. (10A)
  • Simple replacement fuse system
  • 67,500 A instantaneous protection, 32,500 A continuous protection
  • Fully star-grounded cabling
  • 6n oxygen-free copper silver-plated with FEP dielectric
  • SYSTEM LINK socket for system expansion through further connection options and maintenance of the central earthing point
  • Supplied with IsoTek EVO3 INITIUM POWER CABLE (1,5m)
